Module Type:Digital Input
Number of Inputs:16
Input Voltage Range:10-30VDC
Input Current Range:-30 to 30mA
Backplane Current Draw:35mA at 5V, 85mA at 24V
Isolation Voltage:500VDC
Operating Temperature Range:-40°C to +70°C
Enclosure Type:IP20 Open Type
Power Consumption:Less than 1W

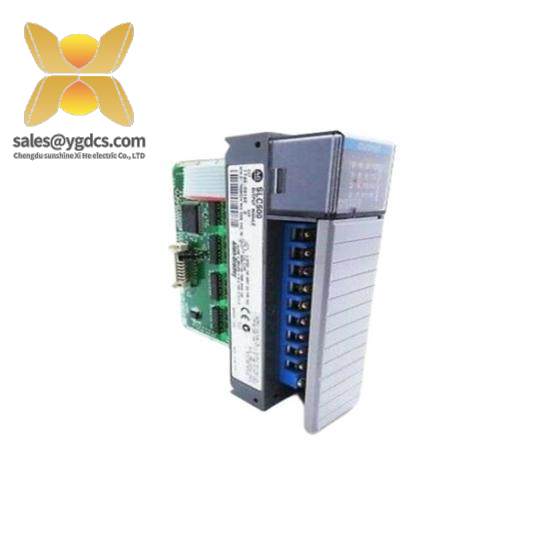

The Allen Bradley 1746-IG16 Input Module is a high-performance device tailored for seamless integration into complex industrial control systems. With its robust design and precise signal acquisition capabilities, it ensures reliable operation in demanding environments.
Featuring 16 individual digital inputs, this module supports a wide range of sensor types, enabling accurate data collection from temperature, pressure, and position sensors. Its compatibility with Allen-Bradley’s SLC 500 series ensures seamless communication within the control system.
Equipped with advanced isolation technology, the 1746-IG16 guarantees electrical safety by providing a significant isolation voltage of 500VDC between input and power supply. This feature minimizes the risk of electrical interference and ensures the longevity of the system.
Operating within a broad temperature range of -40°C to +70°C, the module is suitable for use in extreme conditions found in industrial settings. Its compact size (109mm x 90mm x 40mm) and lightweight design (0.4kg) make it easy to install and integrate into existing systems without compromising on performance.
Designed with ease-of-use in mind, the Allen Bradley 1746-IG16 Input Module offers intuitive setup and configuration options through the ControlLogix family of programmable logic controllers. It supports both analog and discrete inputs, making it versatile for various industrial applications.
