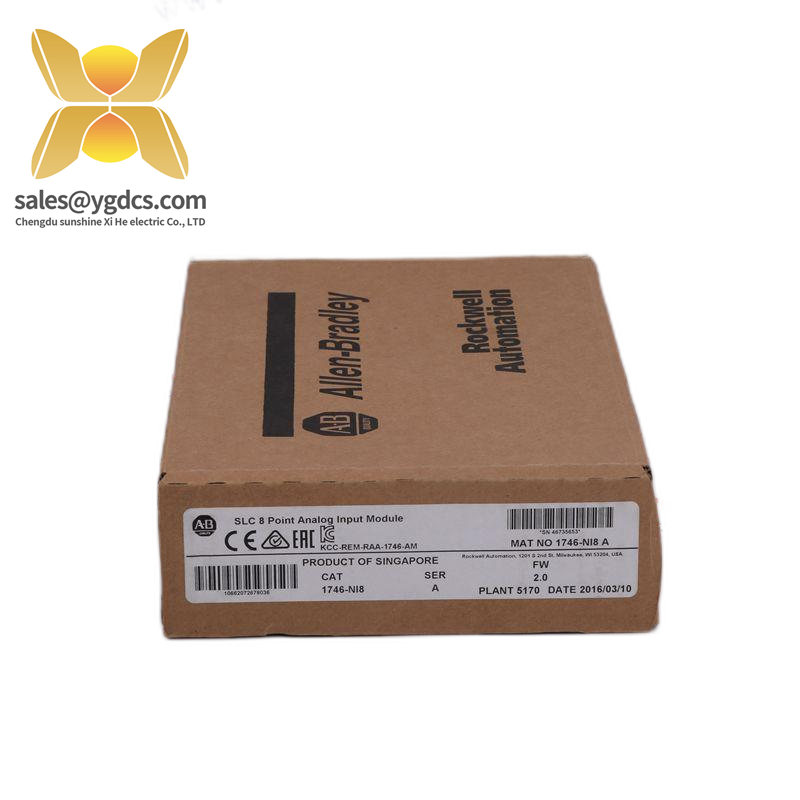

AB 1746-NI8 – Analog Input Module, Allen Bradley, 8-Point, SLC 500

Number of Analog Inputs:8

Common Mode Voltage Range:Plus/Minus 10.25 V

Type of Input:Plus/Minus 20 MA, 4 – 20 MA, 0 – 1 MA, 0 – 20 MA

Voltage Input Without Damage:Plus/Minus 8 V

Current Rating:Backplane: 125 MA at 5 VDC, 75 MA at 24 VDC

Isolation:500 VAC Isolation for 1 sec

Power Rating:Backplane: 2.425 W, Enclosure: Open Type

    This module is specifically engineered for high-precision analog signal acquisition in industrial settings, offering a robust solution for data collection and analysis.

    Featuring 8 programmable inputs, it supports a wide range of signal types including mA and Volts, ensuring compatibility with diverse instrumentation.

    With an isolation rating of 500 VAC for 1 second, this module ensures reliable operation even in harsh industrial environments, providing protection against electrical interference.

    The open-type enclosure design facilitates easy integration into existing systems without compromising on performance or functionality.

    Designed with user convenience in mind, the module supports straightforward installation and configuration, enabling seamless incorporation into various industrial control systems.
