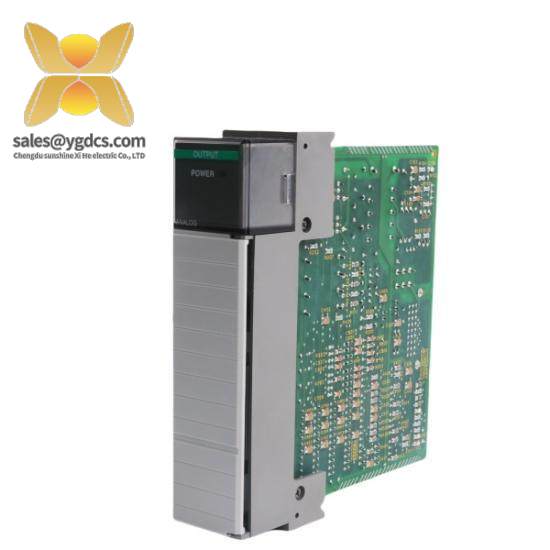

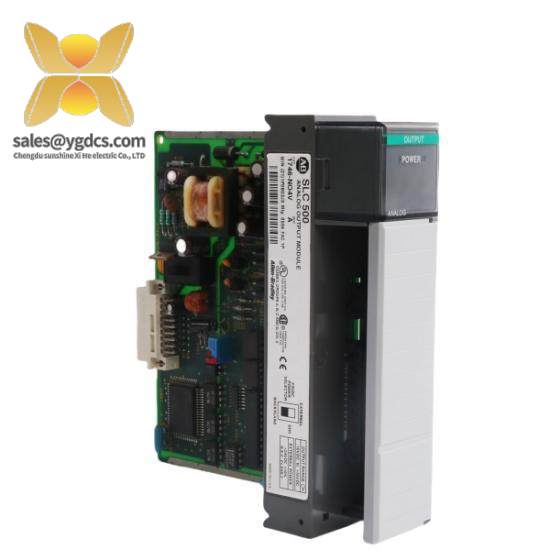

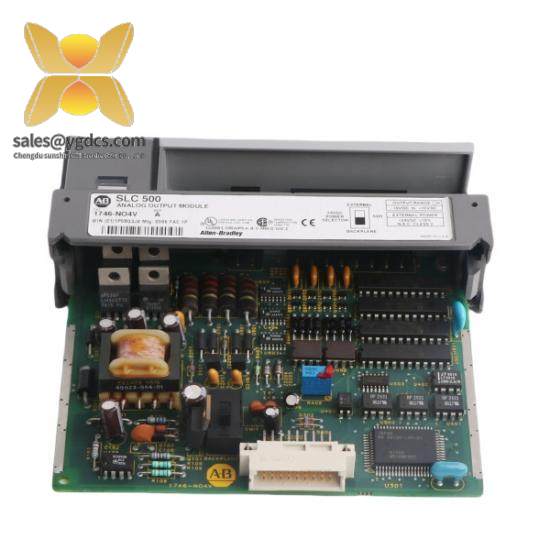

AB 1746-NO4V Analog Input Module for Industrial Control Systems

In stock

The AB 1746-NO4V is a high-performance analog output module designed for precise control applications within industrial automation systems. It enables the conversion of digital signals from Programmable Logic Controllers (PLCs) into analog voltages, facilitating the regulation of actuators and sensors in manufacturing processes.

Operating Voltage:220 V

Number of Channels:4 (Input)

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:Plus/Minus 7.5 VDC or 7.5 VAC RMS (Maximum)

Input Range:-20 To 20 MA

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Input Range (DC):-10 To 10 VDC – 1 LSB

Current Rating:Backplane Current Draw: 35 MA at 5 V, 85 MA at 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

The AB 1746-NI4 Analog Input Module from Allen-Bradley is designed for seamless integration into the SLC500 series, offering high-resolution analog inputs capable of measuring a wide range of signals with precision and reliability.

With 4 channels available, this module ensures efficient data acquisition and analysis in various industrial settings, supporting diverse applications from temperature monitoring to flow rate control.

Featuring an extensive common mode voltage range of -20 to 20V, the module guarantees accurate readings across different environmental conditions, making it ideal for demanding industrial environments.

The robust design includes overvoltage protection, ensuring the safety and longevity of your system, even under fluctuating power supplies. Its isolation feature, both backplane and enclosure, prevents interference between circuits, enhancing system stability.

Engineered with meticulous attention to detail, the 1746-NI4 module is built using high-quality materials to withstand harsh industrial conditions, providing a reliable solution for long-term operation without maintenance interruptions.

1746-NO4V 1746N04V
