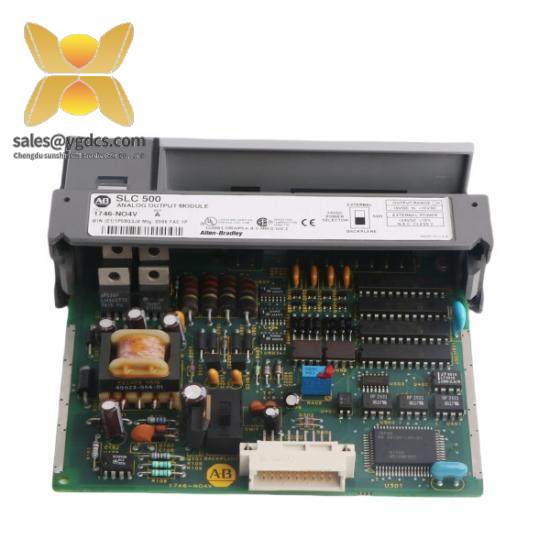

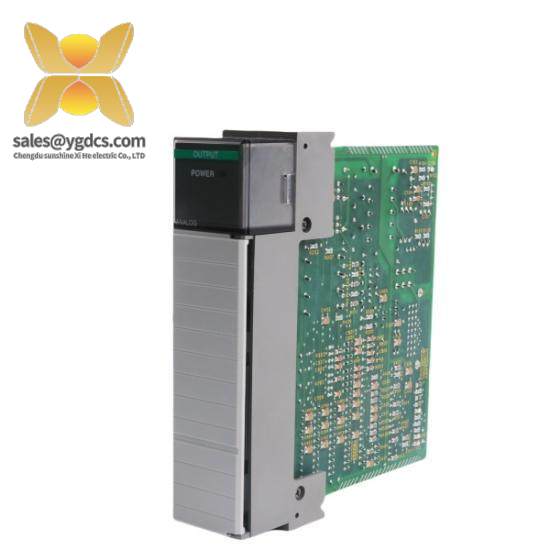

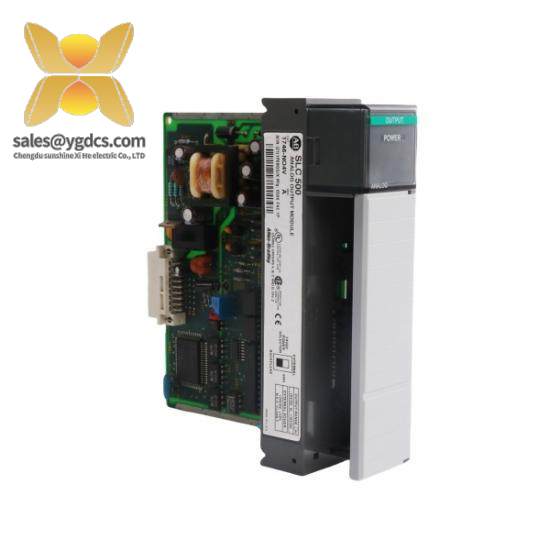

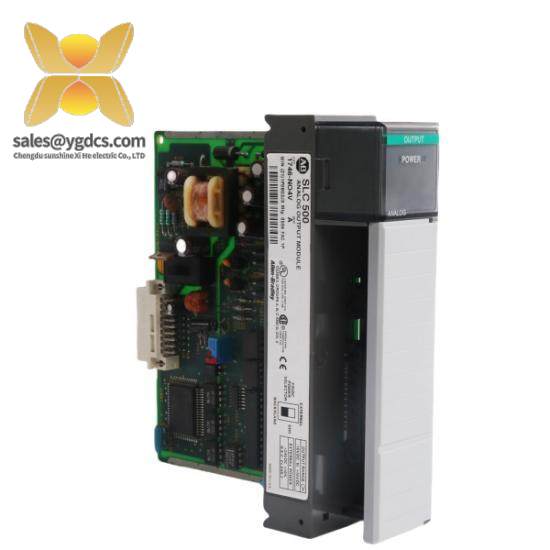

AB 1746-NO4V SLC500 Analog Output Module

Model Type:SLC500

Model Number:1746-NO4V

Manufacturer:Allen Bradley

Channels:4

Input Voltage Range:-20 to 20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Maximum)

Input Range:-20 to 20 mA

Absolute Input Current:-30 to 30 mA (Maximum)

Output Range:-10 to 10 V – 1 LSB

Full Scale:10 VDC

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Current Rating:Backplane Current Draw: 55 mA

Operating Voltage:220 V

Certification:Certified Product

    The AB 1746-NO4V Analog Output Module is a high-performance component designed for use in SLC500 control systems. With its four channels of precise analog output, this module ensures reliable and accurate data transmission in industrial environments. Each channel can deliver a voltage range from -10 to 10 volts, making it suitable for a wide array of applications where precision is critical. The module features overvoltage protection up to 7.5 VAC RMS, ensuring long-term reliability and durability. Designed for easy integration into existing systems, the AB 1746-NO4V simplifies installation and maintenance processes. Its compact design allows for efficient use of space within control panels, while its robust construction ensures operation under demanding conditions. Whether you’re working in manufacturing, process control, or any other industrial setting, the AB 1746-NO4V Analog Output Module is an indispensable tool for achieving optimal performance.
