Voltage Range:10-31VDC
Resolution:320 MICRO-V/Count At Plus/Minus 10.25 V, 160 MICRO-V/Count At 0 – 10.25 V, 80 MICRO-V/Count At 0 – 5.125 V, 0.32 MICRO-V/Count At 0 – 200 MA
Rejection Ratio:Normal Mode Noise: >80 DB, Common Mode Noise: >100 DB
Slot Width:1
Power Consumption:2.3 W
Current Consumption:3.9 W
Operating Temperature:-40°C to +70°C
Mounting:DIN rail or panel mount

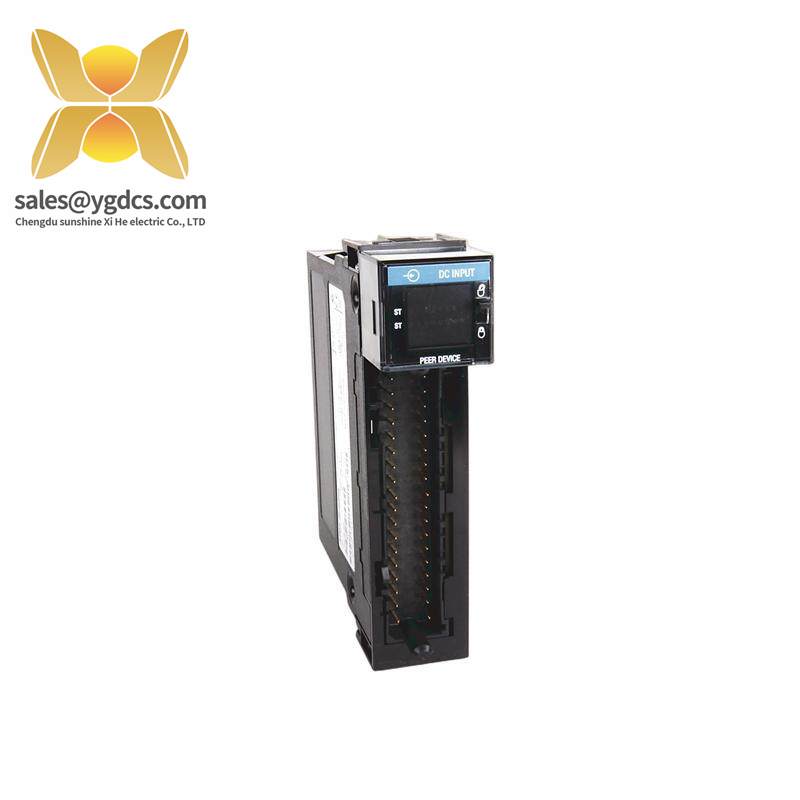

The Allen-Bradley 1756-IB16IF Input Module is engineered to seamlessly integrate into ControlLogix automation systems, providing precise digital input capabilities for enhanced operational efficiency.
Featuring 16 high-performance inputs, this module ensures reliable detection and signal processing, crucial for complex industrial applications.
Operated on a wide voltage range of 10-31VDC, the module is designed for versatility, supporting diverse industrial environments and equipment requirements.
With a maximum current draw of 200mA and a rejection ratio exceeding 80dB for normal mode noise and 100dB for common mode noise, it ensures exceptional signal integrity and robustness against interference.
This Input Module supports an advanced resolution of microvolts per count, allowing for highly accurate measurement and control in critical processes.
Manufactured with high-quality materials and built to withstand harsh industrial conditions, the Allen-Bradley 1756-IB16IF Input Module is a reliable choice for enhancing productivity and reliability in your manufacturing operations.
