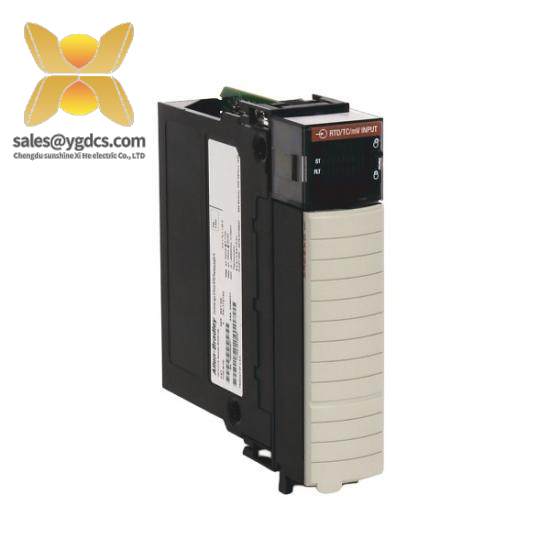

AB 1756-IM160A Isolated Input Module

In stock

The Allen-Bradley 1756-IM160A Isolated Input Module is a high-performance, isolated input solution designed for advanced industrial automation systems. This module offers enhanced isolation and robust protection against noise and interference, ensuring reliable data acquisition in harsh environments.

Number of Channels:16

Channel Configuration:8 Single-Ended Inputs, 8 Differential Inputs

Input Range:0 to 20 mA, 0 to 10 V DC

Supply Voltage:12 to 48 V DC

Operating Temperature:-40°C to +85°C

Enclosure Type:IP20, Panel-Mountable

Communication Protocol:ControlNet

Mounting Options:Panel-Mount

Power Consumption:Max. 4 W

Engineered for seamless integration into ControlLogix systems, the 1756-IM160A Isolated Input Module provides reliable and accurate data acquisition.

Featuring optocoupled isolation, it ensures protection against electrical noise and ground loops, ensuring stable operation in harsh industrial environments.

Each of the 16 channels supports a wide signal range from -10V to +10V DC, making it versatile for various industrial signals including analog and digital inputs.

With a supply voltage of 12V DC, this module is designed to operate efficiently across a broad temperature range from -40°C to 70°C, ensuring reliability in extreme conditions.

The DIN rail mount design allows for easy installation and alignment, streamlining the setup process for industrial automation projects.
