Operating Voltage (V)::860
Peak Forward Current (A)::397
Reverse Breakdown Voltage (V)::1000
Forward Recovery Time (ns)::10
Diode Package::TO-220
Temperature Range (°C)::-55 to +175
Current Rating at Junction Temperature (°C)::150
Maximum Reverse Voltage (V)::1000

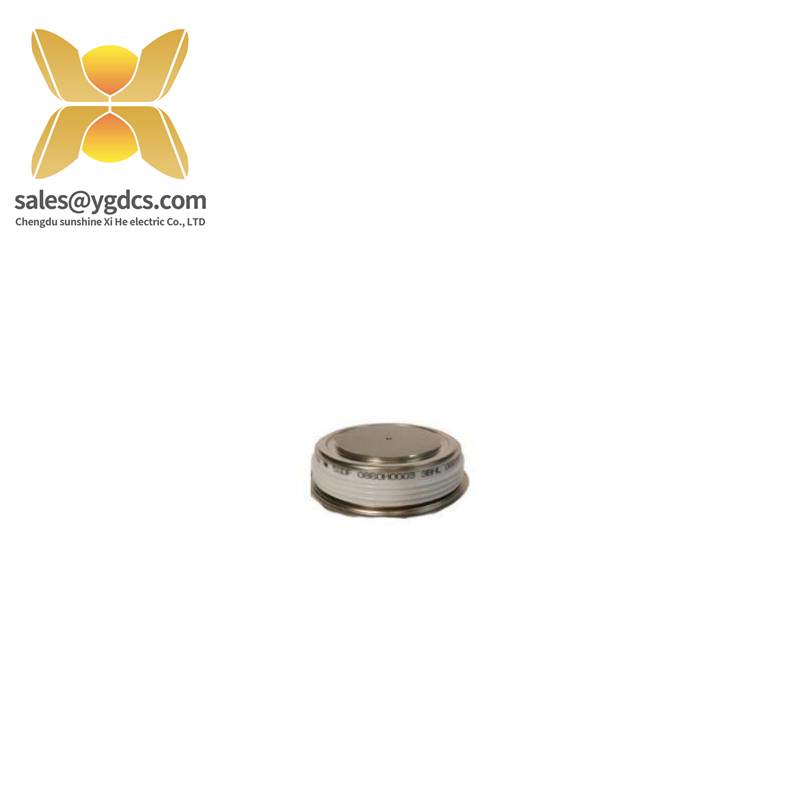

The ABB 5SDF0860H0003, 3BHL000397P0001 Fast Recovery Diode is a cornerstone component in power electronics, engineered to withstand the rigors of industrial environments. With its ultra-fast recovery time of 10 nanoseconds, it ensures minimal power loss and superior performance in circuits requiring rapid switching.
Designed for high-efficiency power conversion applications, this diode boasts an operating voltage of 860V and a peak forward current of 397A, making it ideal for systems where high power handling capabilities are essential. The robust reverse breakdown voltage of 1000V guarantees safety and reliability under extreme conditions.
Equipped with a TO-220 package, the diode is compact yet sturdy, facilitating easy integration into various circuit layouts. Its temperature range of -55°C to +175°C ensures operational stability across a wide spectrum of industrial climates.
Notably, the ABB Fast Recovery Diode maintains its full current rating even at junction temperatures up to 150°C, a testament to its exceptional thermal management capabilities. This feature is crucial in environments where heat dissipation is a concern, safeguarding against overheating and potential damage to sensitive electronic components.
In summary, the ABB 5SDF0860H0003, 3BHL000397P0001 Fast Recovery Diode offers unparalleled performance, reliability, and durability, making it the preferred choice for engineers and manufacturers seeking high-quality solutions for their power conversion needs.
