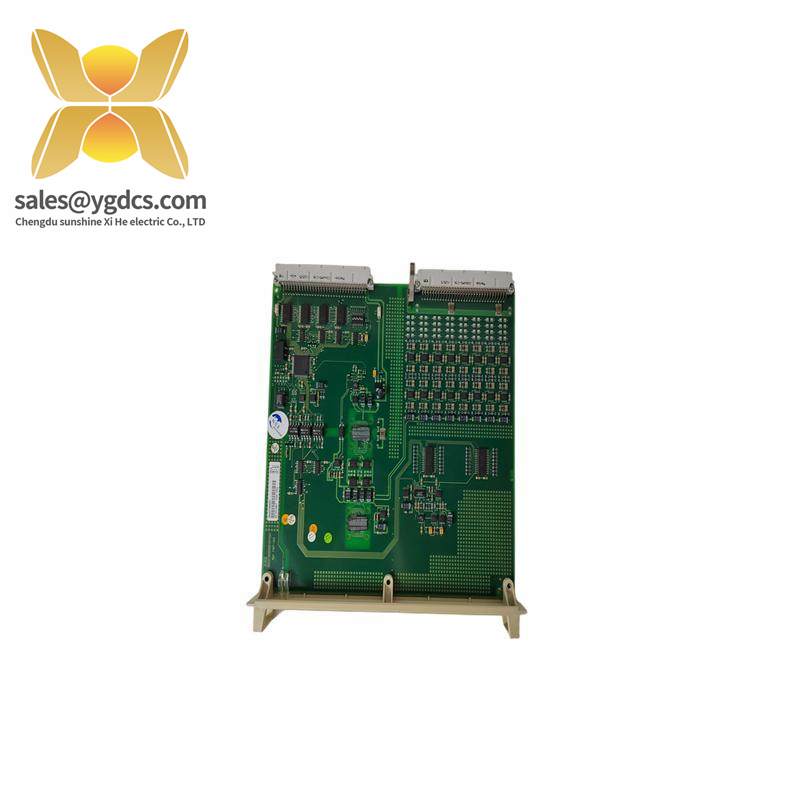

ABB DSAI146 3BSE007949R1 – RTD Input Module, Precision Temperature Measurement for Industrial Control

Product Type:RTD Input Module

Model Number:3BSE007949R1

Manufacturer:ABB

Operating Range:-200°C to +500°C

Accuracy:+/-0.1% of reading

Supply Voltage:10…30 VDC

Current Consumption:Max. 20 mA

Connectors:5-pin modular

Dimensions (WxHxD):101.6mm x 25.4mm x 101.6mm

Weight:Approx. 0.2kg

Temperature Coefficient:±0.01%/°C

Operating Conditions:Ambient temperature: -20…+70°C

Humidity:Non-condensing: 5…95%

Enclosure Rating:IP20

    Precision-engineered for accurate temperature sensing, the ABB DSAI146 3BSE007949R1 RTD Input Module is an indispensable component for maintaining optimal operational conditions in industrial environments.

    Featuring robust construction and high-precision RTD (Resistance Temperature Detector) technology, this module ensures reliable data transmission for critical control systems.

    Designed for easy integration into existing industrial automation setups, it supports a wide variety of thermocouple types, enhancing its versatility across different industries.

    With an extended operating temperature range and IP20 environmental rating, this module can withstand harsh industrial conditions, ensuring continuous and uninterrupted operation.

    The inclusion of spring-loaded terminal blocks simplifies installation and maintenance, reducing downtime and enhancing system reliability.

    Certified for CE, UL, CSA, and TUV standards, the ABB DSAI146 3BSE007949R1 meets global safety and quality benchmarks, providing peace of mind for users worldwide.
