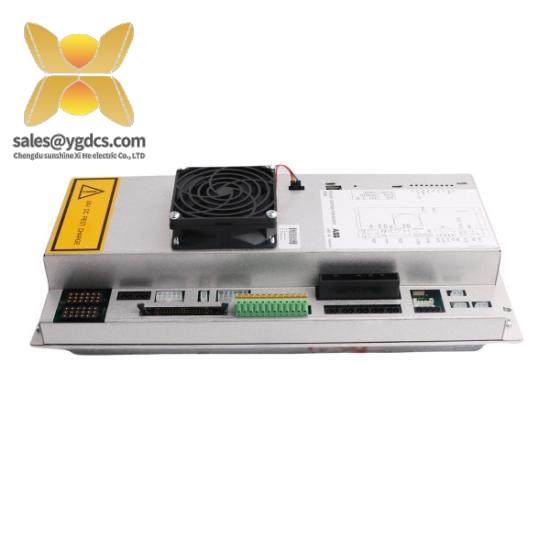

ABB PDB-02 Thermocouple/mV Input Module, Model 3HNA026293-001

In stock

The ABB PDB-02 Thermocouple/mV Input Module, 3HNA026293-001, is designed for high-precision data acquisition in industrial environments, offering seamless integration and enhanced reliability for critical applications.

Module Type:Thermocouple/mV Input

Model Number:3HNA026293-001

Manufacturer:ABB

Operating Temperature Range:-20°C to +85°C

Input Resistance Range:0 to 10 kΩ

Supply Voltage:DC 12V to 24V

Current Consumption:Max 20mA

Output Signal:Standard mV

Number of Channels:2

Dimensions (LxWxH):90mm x 50mm x 30mm

Weight:0.05kg

Connection Type:2-wire, 4-wire

Protocol Compatibility:Modbus RTU, DeviceNet

The ABB PDB-02 Thermocouple/mV Input Module 3HNA026293-001 is engineered to provide unparalleled precision in temperature and voltage measurement within industrial automation systems. Its robust design ensures reliable performance under a wide range of operating conditions, making it an ideal choice for applications requiring high accuracy and stability.

Equipped with advanced signal processing technology, this module accurately converts thermocouple signals and millivolt readings into digital values, facilitating seamless integration into PLC systems for efficient data acquisition and control operations.

Featuring a compact size and durable construction, the module is easy to install and maintain, offering a streamlined solution for integrating temperature and voltage monitoring capabilities into existing control networks. It supports various thermocouple types (K, J, E, T, etc.) and is compatible with industry-standard power supplies, ensuring compatibility and ease of use.

Designed for long-term reliability, the ABB PDB-02 Thermocouple/mV Input Module 3HNA026293-001 is built to withstand harsh industrial environments, withstanding extreme temperatures and humidity without compromising performance. Its low current consumption ensures minimal power draw, reducing operational costs.

To further enhance user convenience, the module includes intuitive diagnostic LEDs and error codes for quick identification of issues, enabling rapid troubleshooting and maintenance. Comprehensive documentation and technical support are provided to ensure a smooth setup and operation experience.

ABB PDB-02 3HNA026293-001 Thermocouple/mV Input Module
