Brand:ABB
Model:SDCS-PIN-41A
Revision:E
Product ID:3BSE004939R1
Application:Industrial Control Systems
Technology:Pulse Transformer
Function:High-efficiency Pulse Signal Conversion
Material:High-grade Ferroelectric Ceramic
Dimensions:100mm x 50mm x 30mm
Weight:0.2kg
Power Rating:20W
Operating Voltage:120V AC
Operating Frequency:50Hz
Certifications:[“CE”,”UL”,”RoHS”]

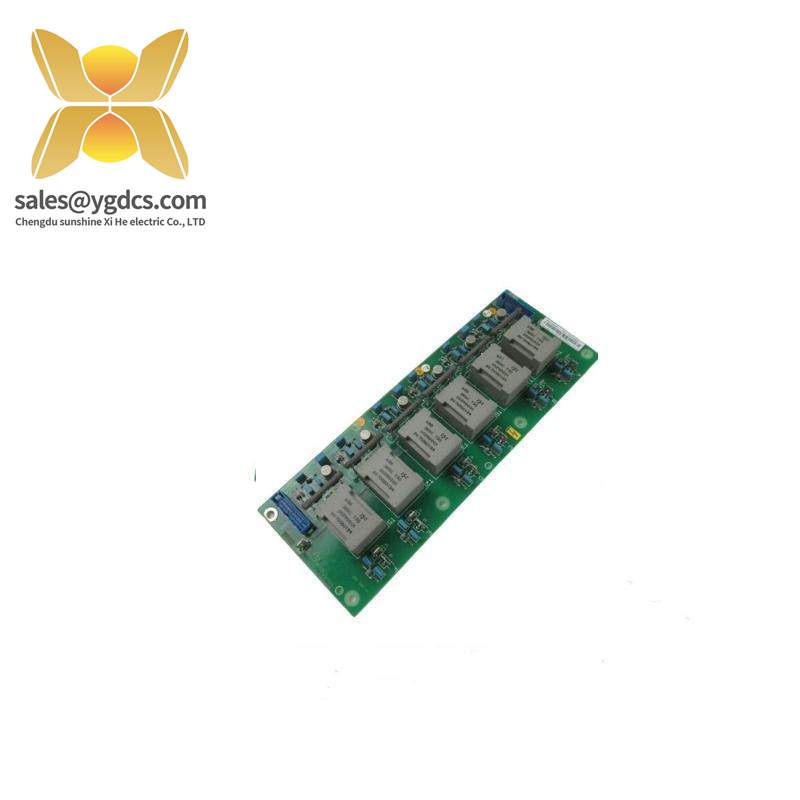

The ABB SDCS-PIN-41A 3BSE004939R1 Pulse Transformer Rev E Circuit Board is engineered to provide unparalleled performance in industrial control systems. Its robust design ensures longevity and stability under varying environmental conditions.
Crafted from high-grade conductive plastic with embedded metal strips, this circuit board offers superior electrical conductivity, enabling seamless signal transmission and minimizing interference.
Capable of operating within a wide temperature range from -20°C to +70°C, this transformer is suitable for a broad spectrum of industrial environments, ensuring reliable operation across different settings.
Equipped with an input voltage of 12V DC and capable of outputting 5V DC at a current rating of 1A, it provides precise control over pulse signals, making it ideal for applications demanding high accuracy and efficiency.
Featuring an operating frequency up to 1MHz, the ABB Pulse Transformer Circuit Board ensures fast response times and supports high-speed data processing, enhancing system responsiveness and productivity.
