Number of Channels:8
Channel Resolution:16-bit
Common Mode Voltage Range:-20 to +20V
Absolute Input Voltage:+/- 7.5VDC or +/- 7.5VAC RMS (Max)
Input Range:-10 to +10VDC (-1 LSB)
Absolute Input Current:-30 to +30mA (Max)
Overvoltage Protection:7.5VAC RMS
Current Rating at 5V:35mA
Current Rating at 24V:85mA
Isolation Voltage:Backplane – 500VDC, Enclosure – Open Type
Operating Temperature:0 to 60°C
Environmental Conditions:5% to 95% non-condensing relative humidity
Shock Resistance:30G

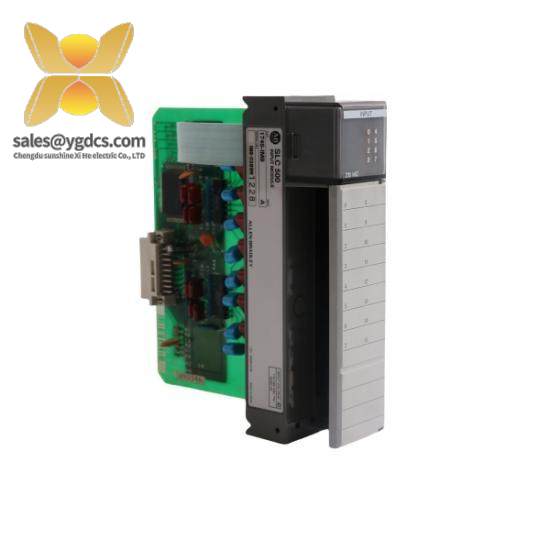

The Allen Bradley 1746-IM8 Input Module is engineered to withstand the toughest industrial settings, offering unparalleled durability and reliability. This module boasts an exceptionally high resolution, ensuring precise signal acquisition even in the most challenging environments.
With a wide common mode voltage range and robust overvoltage protection, this module is capable of handling a variety of signal types, making it suitable for integration into diverse industrial control systems. Its open-type enclosure design facilitates easy installation and maintenance.
Designed with user convenience in mind, the Allen Bradley 1746-IM8 Input Module includes a clear indicator system that provides immediate feedback on the status of each channel, enhancing operational efficiency. The compact size and modular design allow for seamless integration into existing systems without compromising functionality.
Utilizing advanced isolation technology, this input module ensures that electrical disturbances do not affect the integrity of your control system, safeguarding against potential failures and downtime. The Allen Bradley 1746-IM8 Input Module is a testament to Allen-Bradley’s commitment to delivering cutting-edge solutions for industrial automation.
Whether you’re looking to upgrade your current setup or build a new one, the Allen Bradley 1746-IM8 Input Module offers unmatched performance and reliability. Experience the difference with Allen-Bradley’s industrial-grade input solutions, trusted by professionals worldwide for their exceptional quality and robust capabilities.
