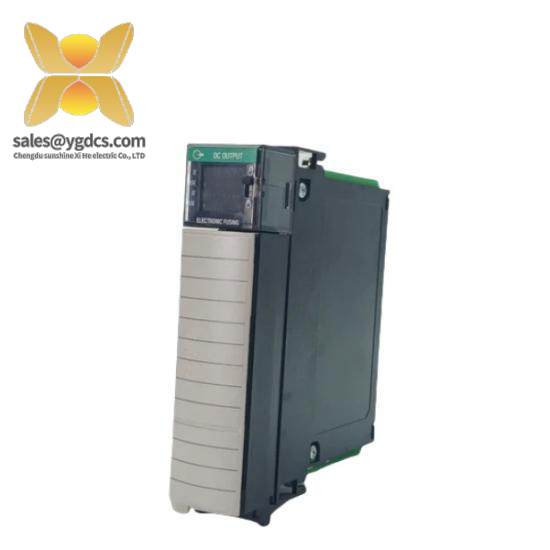

Allen Bradley 1756-OB16E ControlLogix 16 Point Digital Output Module

Model Type:ControlLogix

Manufacturer:Allen Bradley

Product ID:1756-OB16E

Product Type:Digital DC output

No. of Outputs:16

Output Voltage Range:10-31.2 VDC

Nominal Output Voltage:24 VDC

Connection:12-24 Volts DC

Module Designation:Allen Bradley Type Designation

Series:ControlLogix

Extended Product Type:Allen Bradley 1756-L63

Backward Compatibility:MVI56-MNETR versions

Single-Slot ControlLogix Backplane Compatibility:

Ethernet Configuration:10/100 Mbps auto crossover detection

Ethernet Port:Ethernet configuration and application port

User-Defined Module Data Memory Mapping:Up to 5000, 16-bit registers

CIPconnect-Enabled:Network configuration and diagnostics monitoring

Communication Throughput:Reduced I/O image size for remote rack implementations

Optimization Feature:ProSoft Configuration Builder (PCB) software

    The Allen Bradley 1756-OB16E is a robust and versatile ControlLogix Digital Output Module, meticulously engineered for seamless integration into industrial automation setups. It provides sixteen (16) electronically fused output points, each capable of delivering precise control with a nominal voltage of 24 VDC, ensuring reliability across a wide range of applications.

    This module is designed with user-definable data memory mapping, allowing for up to 5000 16-bit registers. This feature ensures flexible configuration and efficient data management, optimizing system performance.

    Equipped with advanced networking capabilities, including backward compatibility with previous MVI56-MNETR versions, the 1756-OB16E seamlessly integrates with existing infrastructure while supporting future upgrades. The module features 10/100 Mbps auto crossover detection for robust Ethernet connections, enhancing connectivity and reliability.

    The Allen Bradley 1756-OB16E is an ideal choice for engineers seeking a high-quality, efficient, and adaptable digital output solution. Its compatibility with the ProSoft Configuration Builder (PCB) software streamlines setup and maintenance, making it a preferred option for both new installations and system expansions.

    Whether you’re upgrading an existing system or starting fresh, the Allen Bradley 1756-OB16E ControlLogix 16 Point Digital Output Module offers unparalleled performance and reliability, backed by the industry-leading expertise of Allen Bradley. Upgrade your automation capabilities today with confidence in this state-of-the-art technology.
