Brand:Allen-Bradley
Series:Kinetix 6000
Module Type:Axis Module
Input Voltage Range:324-528V rms, 3-phase
Nominal Voltage:360 / 480V
Voltage Class:400V
Power Dissipation:57-126 Watts
Continuous Output Power (Nom):3.9 kW
Peak Current (RMS):8.6 A
Continuous Output Current (RMS):6.1 A
Efficiency:98%
Internal Shunt Peak Power:5.6 KW
Internal Shunt Continuous Power:50W
Capacitance:150 ?F
Capacitive Rating:200,000 A (rms) symmetrical
PWM Frequency:8 kHz
Velocity Loop Bandwidth Frequency:500 Hz
Current Loop Bandwidth Frequency:1300 Hz
Weight:22.3 lbs (10.1 kg)

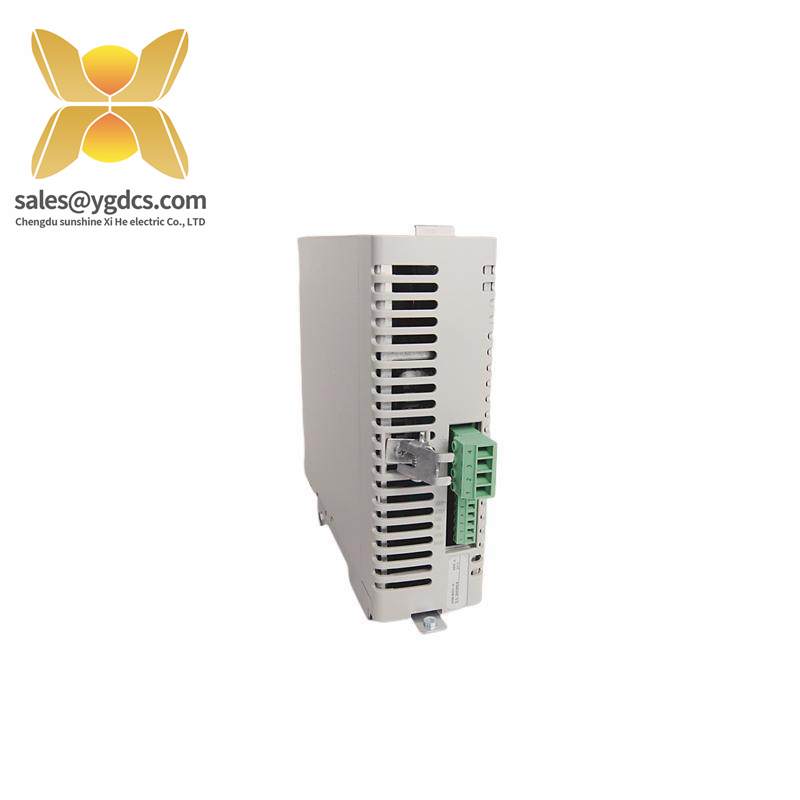

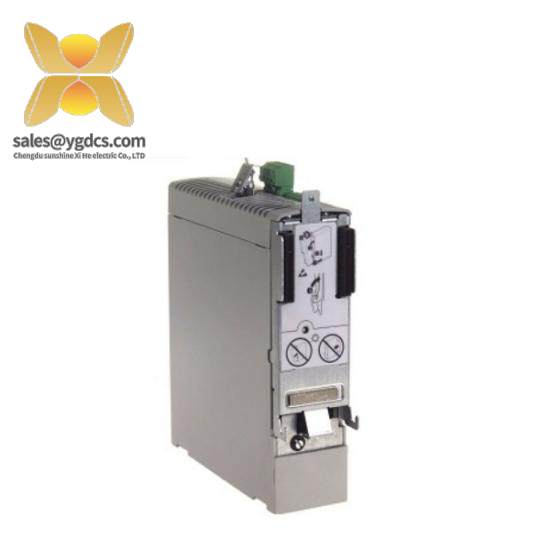

The Allen-Bradley 2094-BM01-S is a high-performance axis module designed for use in the Kinetix 6000 Multi-Axis Drive Servo system. This module boasts an impressive efficiency rating of 98%, ensuring optimal energy usage and reducing operational costs. Integrated with a robust internal shunt resistor of 115 Ω, it offers reliable current management. With a continuous output power of 3.9 kW, this module is capable of handling demanding industrial applications. The high velocity loop bandwidth frequency of 500 Hz and current loop bandwidth frequency of 1300 Hz provide precise control and responsiveness. Additionally, its pulse width modulation (PWM) frequency of 8 kHz ensures smooth and efficient operation. Designed with safety in mind, the module includes integrated Safe Torque Off (STO) functionality, which enhances operator safety and reduces downtime. Easy to integrate and maintain, the 2094-BM01-S is an ideal choice for manufacturers looking to upgrade their servo control systems.
