Model:DS200PCCAG5ACB
Manufacturer:General Electric
Application Range:Turbine Control Systems
Operating Voltage:1500 V rms
Compatible Components:J, K, and M-style frame components
Number of Wire Jumpers:4
Hardware Component Inclusions:Resistors, Capacitors, Diodes, Integrated Circuits
Mounting Method:Securely attached to a board carrier with plastic holders
Insulation Detail:Factory-drilled base circuit board with insulated material around drill holes

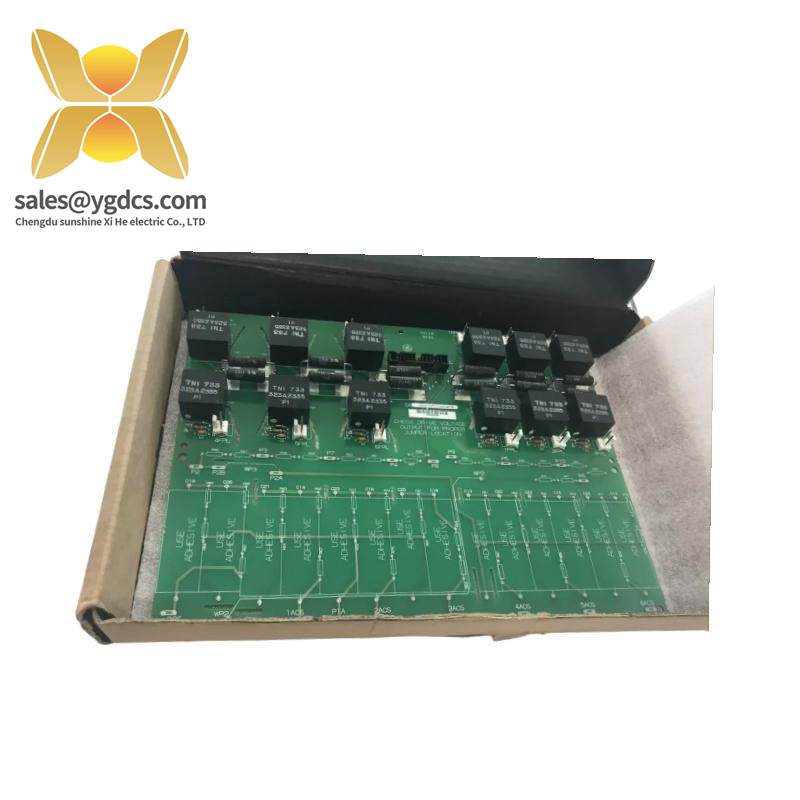

The GE DS200PCCAG5ACB Power Connect Card is meticulously designed for integration into the GE Industrial Control Systems’ Mark V series, offering unparalleled performance and reliability.
Equipped with a robust base circuit board featuring strategically placed drilled holes insulated with protective materials, ensuring durability and safety.
Leg reactors and fuses, alongside separate or common bus transformers, contribute to the card’s efficient power management capabilities, making it a critical component in high-voltage applications.
With a maximum AX voltage rating of 1500 V rms, the DS200PCCAG5ACB is compatible with a wide range of J, K, and M-style Mark V Series frame components, facilitating versatile installation options.
Comprising four essential wire jumpers (WP4, WP3, JP2, JP1), the card facilitates precise electrical connections, enhancing system stability and reducing downtime.
Engineered for operation within extreme temperature ranges (-40°C to +85°C), the DS200PCCAG5ACB ensures continuous performance in challenging industrial environments, making it a reliable choice for demanding applications.
