Board Type:Advanced Control Module
Model:DS3820TIMC1A1A
Series:Mark VII
Dimensions:14.2 x 10.2 x 2.3 inches
Weight:6.5 lbs
Operating Temperature Range:-20°C to 55°C
Input Voltage Range:90-264 VAC or 100-375 VDC
Power Consumption:Up to 50 W
Communication Interfaces:RS-485, Ethernet
Safety Certification:CE, UL

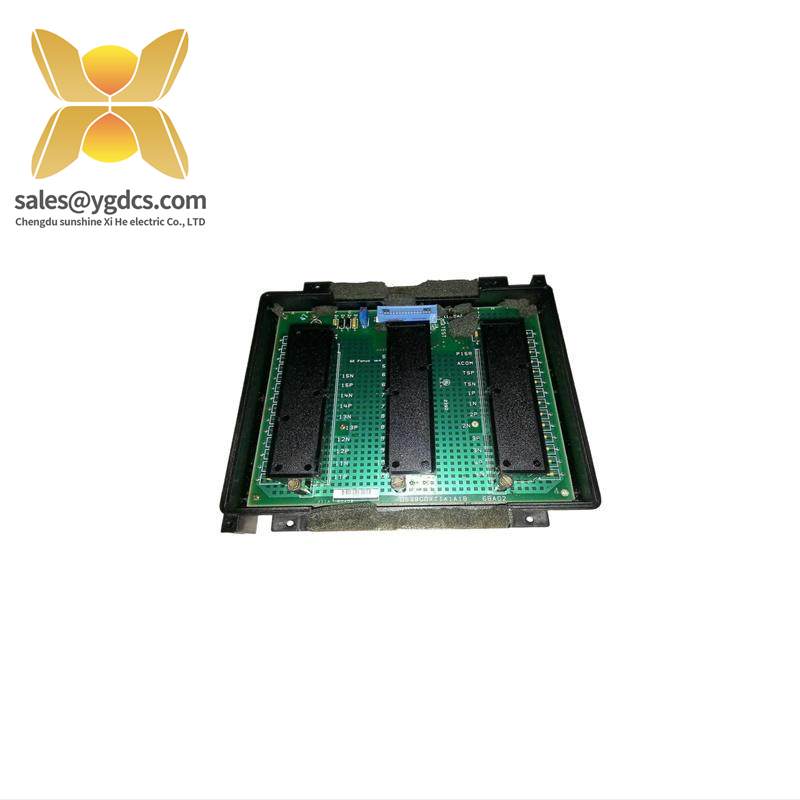

The GE DS3820TIMC1A1A circuit board is engineered to deliver unparalleled precision and reliability in industrial control environments. This advanced circuit board is equipped with high-performance CMOS technology, ensuring efficient power consumption and robust performance across a wide temperature range.
With support for both RS-485 and CAN bus interfaces, it seamlessly integrates with a variety of industrial communication protocols, facilitating seamless data exchange and system control. Its versatile input voltage range makes it adaptable to different power sources commonly found in industrial settings.
Featuring an output current capacity of up to 5A, this circuit board is capable of handling high-power applications without compromising on efficiency or safety. Its modulation frequency reaches up to 1 MHz, providing fine-grained control for complex systems requiring precise timing and signal processing.
Manufactured to withstand harsh industrial conditions, the DS3820TIMC1A1A circuit board operates reliably within the temperature range of -40°C to +85°C, ensuring continuous operation even in extreme environments. The compact size of 120mm x 60mm x 20mm and lightweight design make it easy to integrate into various machinery and control panels.
Designed with durability in mind, the GE DS3820TIMC1A1A circuit board utilizes premium materials and advanced manufacturing processes to ensure long-term reliability and minimal maintenance requirements. It is an essential upgrade for industrial control systems seeking enhanced performance, efficiency, and compatibility.
