Brand:General Electric
Model:DS3800HCMC
Sub-Model:Gas Turbine Daughter Board
Module Category:Mark IV DS3800
Connector Type:Modular Connector
Attachment Feature:Drive Attachment with Retention Levers
Number of Jumpers:14
Indicator LEDs:[“Amber”,”Red”]
Connectors:2 x 34-pin
Capacitors and Resistors:Multiple
Embedded Components:EPROM Modules
Firmware and Code Storage:Erasable Programmable Read-Only Memory

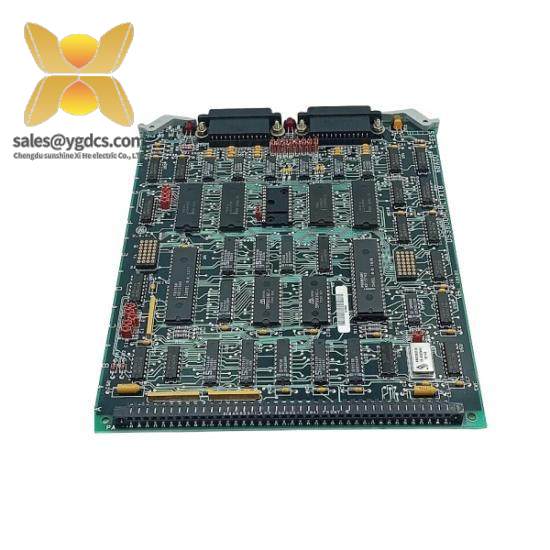

The General Electric DS3800HCMC Gas Turbine Daughter Board is a critical component designed for high-performance integration into the GE Mark IV gas turbine control system. This daughter board is renowned for its modular design, which facilitates easy attachment to the drive and secure retention, ensuring reliable operation even in the harshest industrial settings.
Equipped with 14 jumpers for versatile connection options, and featuring 1 amber and 2 red indicator LEDs, the DS3800HCMC provides real-time operational feedback, allowing for immediate identification of system status and potential issues.
The board’s robust construction includes two 34-pin connectors for seamless communication with other system components, complemented by an array of high-performance capacitors and resistors that maintain stable electrical signals under varying conditions.
Embedded within the DS3800HCMC is an erasable programmable read-only memory (EPROM) module, storing the firmware and machine-readable code necessary for executing precise processing instructions, ensuring smooth and efficient operation of the gas turbine system.
Designed for durability, the DS3800HCMC features a compact form factor that simplifies installation and maintenance processes. Its operating temperature range (-20°C to +60°C) makes it suitable for deployment in a wide variety of industrial environments, guaranteeing uninterrupted operation throughout extreme weather conditions.
