Type:Emergency Termination Board
Series:Mark VI
Board Dimensions:14.8 x 10.3 x 3.2 cm
Weight:0.24 kg
Component Count:Various electrical connectors and terminal blocks
Material:Ruggedized industrial-grade materials
Operating Temperature Range:-40°C to +70°C
Environmental Certification:UL/CE/RoHS compliant

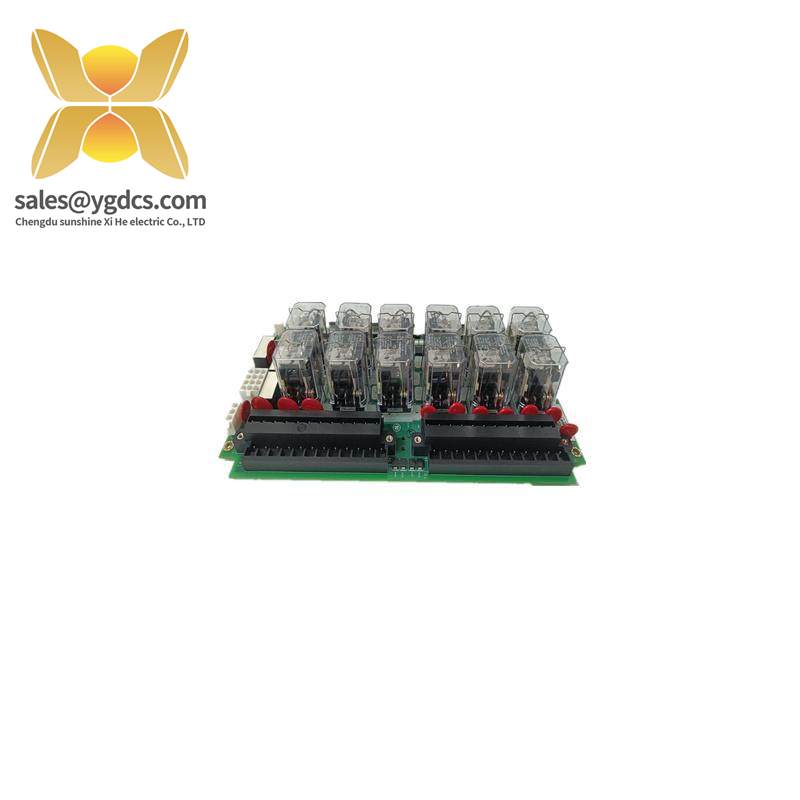

The IS200TREGH1BDB is engineered to withstand the harsh conditions typically encountered in gas and turbine operations, featuring a robust design and high-quality materials that guarantee longevity and reliability.
This board is equipped with two long terminal blocks housing 24 silver metallic terminals, arranged from top to bottom, facilitating seamless connection to critical system components.
A series of four large capacitors, shaped like rectangles and colored yellow, are strategically positioned on the right side, providing essential energy storage capabilities for rapid response during emergency shutdowns.
The inclusion of three variable resistors or potentiometers at the top right corner allows for precise adjustment of system parameters, ensuring optimal performance under various operational conditions.
Integrated with GE’s proprietary software, the IS200TREGH1BDB ensures compatibility and seamless integration with the Mark VI control system, enhancing overall efficiency and safety in industrial environments.
