Product Type:ASCII
Supports CompactLogix Processors:Version 16 and above (MicroLogix 1500 Not Supported)
Add-on Instruction:Creates UDTs for I/O, Status, and Control Data
Add-on Profile Support:RSLogix 5000 Version 20 and Above
Diagnostic Data:Available in RSLogix 5000 Controller Tags
Communication Parameters:Baud Rate: 110 to 115K, Stop Bits: 1 or 2, Data Size: 7 or 8 Bits, Parity: None, Even, Odd, RTS Timing Delays: 0 to 65535 ms

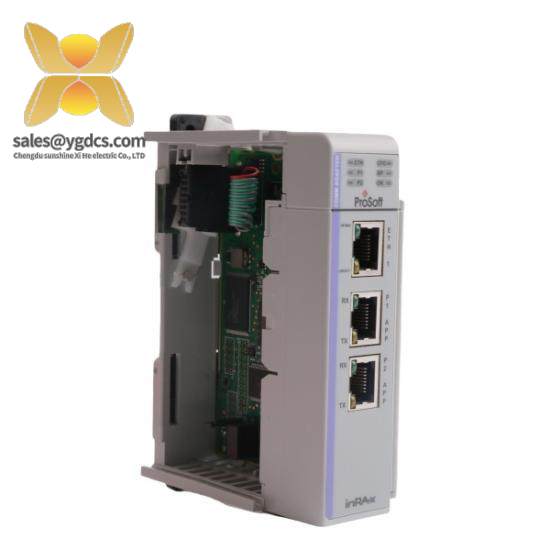

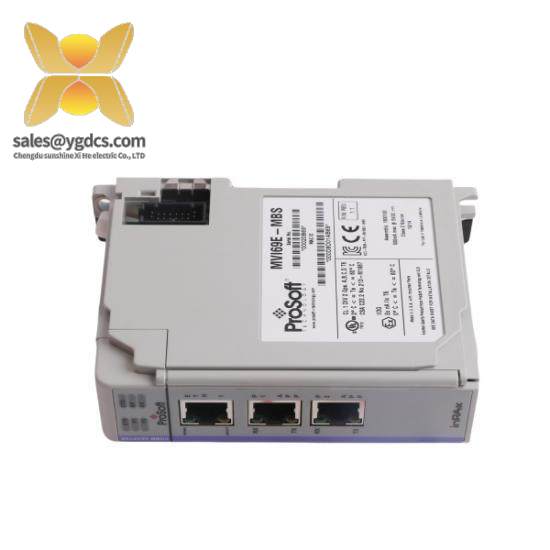

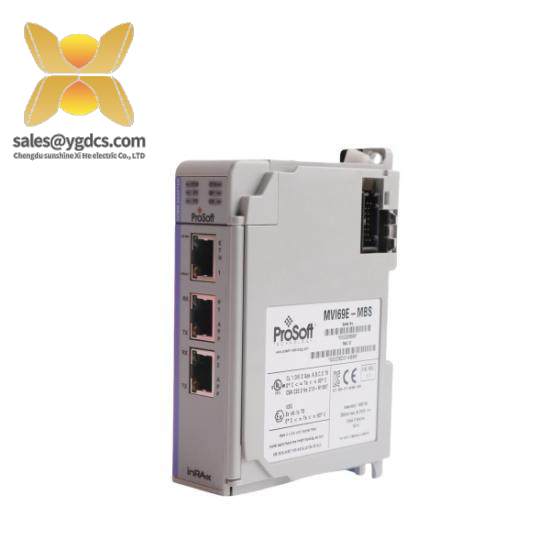

The Prosoft MVI69E-MBS Communication Module is specifically designed to enhance connectivity and performance in industrial control systems. It supports CompactLogix processors with 1769 I/O bus capability version 16 and above, ensuring compatibility and robustness in a wide range of applications.
With its add-on instruction feature, users can create User Defined Types (UDTs), offering logical definitions for input/output, status, and control data. This functionality streamlines the integration process within the CompactLogix system, making setup and management more efficient.
Equipped with a diagnostic data feature accessible through RSLogix 5000 controller tags, this module enables real-time monitoring of node health. Decision-making processes can thus be based on current system conditions, optimizing operational efficiency and predictive maintenance schedules.
The MVI69E-MBS module is licensed backplane technology, manufactured under a Rockwell Automation license. This ensures high-speed data transfer between the module and the CompactLogix/MicroLogix processor, facilitating faster response times and enhanced system performance.
Offering a generic 1769 module format, it comes with a sample ladder logic guide to ease installation. The modular design allows for easy integration into existing systems without compromising on functionality. Furthermore, the module supports the Modbus Master/Slave protocol interface, enabling flexible communication with various devices and systems.
