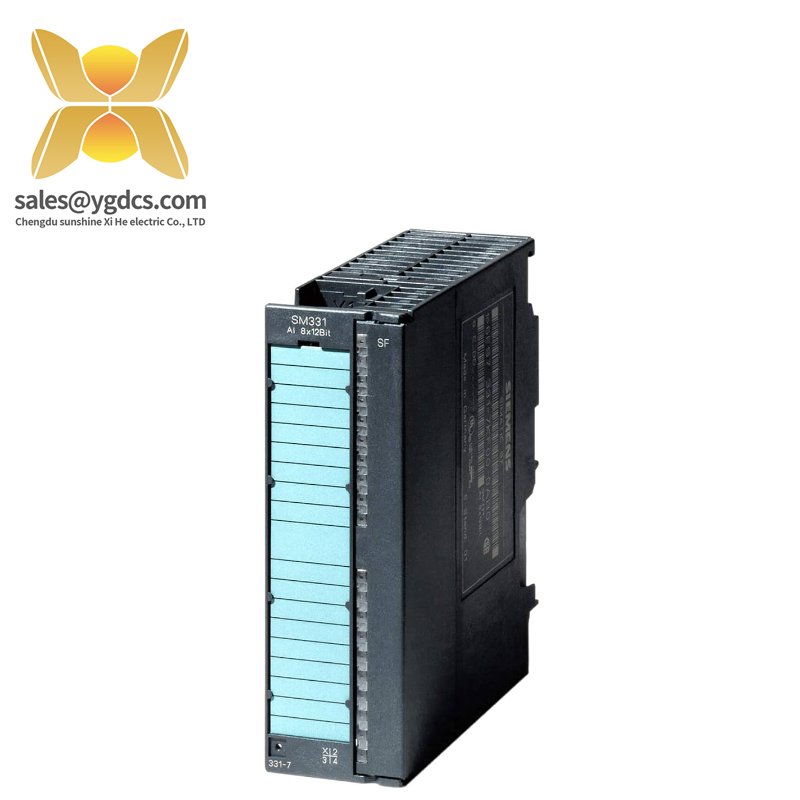

SIEMENS 6ES7331-7PF11 Analog Input Module – High-Performance Input Solution

Model Number:6ES7331-7PF11-0AB0

Type:Analog Input Module

Brand:SIEMENS

Application Range:Industrial Automation

Number of Channels:16

Signal Types Supported:Voltage, Current

Resolution:14 Bit

Sampling Time:≤0.052ms/channel

Power Supply Voltage:208/240VAC

Operating Temperature:-25°C to +70°C

Protection Level:IP20

Connection Type:20-Pole Connector

Diagnosis & Alarm Features:Diagnostic LEDs, Alarm Outputs

Bus Compatibility:Profibus, DeviceNet, CANopen

EMC Compliance:Built-in EMI Filter

Dimensions (WxDxH):129x148x51mm

Weight:0.291kg

    The SIEMENS 6ES7331-7PF11 Analog Input Module is engineered to meet the stringent requirements of modern industrial automation environments. This robust, modular component is designed for efficient signal acquisition, processing, and transmission, making it an indispensable part of any industrial control system.

    Featuring a compact, modular design and a built-in PLC function, this module seamlessly integrates into existing systems without compromising performance or reliability. Its high-resolution 14-bit analog inputs provide unparalleled accuracy, ensuring precise data acquisition even under varying environmental conditions.

    With support for multiple fieldbus protocols including Profibus, DeviceNet, and CANopen, the module ensures seamless communication with other devices, enhancing system flexibility and efficiency. The inclusion of an EMI filter further ensures electromagnetic compatibility, protecting against interference in noisy industrial settings.

    This Analog Input Module is equipped with diagnostic LEDs and alarm outputs, enabling real-time monitoring and proactive maintenance, thus reducing downtime and improving operational efficiency. Its wide operating temperature range (-25°C to +70°C) makes it suitable for use in a variety of industrial environments, from cold storage facilities to hot manufacturing floors.

    The 6ES7331-7PF11 Analog Input Module is designed for easy installation and configuration, thanks to its standard 20-pole connector and comprehensive documentation. It supports DC BUS sharing, providing flexibility in power distribution and system scalability. Its comprehensive protection features, including overload and short-circuit protection, ensure robust operation under harsh conditions.
