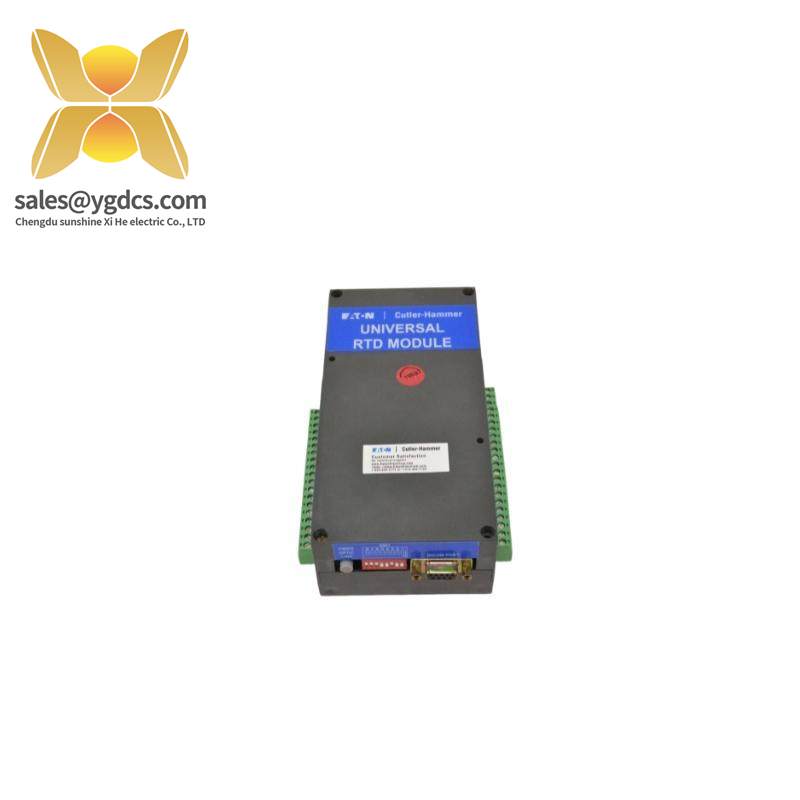

WESTINGHOUSE 2D78559G01: Eaton Universal RTD Module, Precision Temperature Sensing for Industrial Control

Type:Temperature Sensing Module

Model Number:2D78559G01

Brand:Westinghouse

Manufacturer:Eaton

Operating Range:-200°C to 850°C

Resistance Tolerance:+/-0.01% of Full Scale

Input Voltage:10-30V DC

Output:4-20mA or 0-10V

Accuracy:±0.05% + ±1 Digit

    The WESTINGHOUSE 2D78559G01 Eaton Universal RTD Module is designed for applications requiring high accuracy and reliability in temperature measurement. It utilizes advanced RTD technology to ensure precise temperature readings across a wide range from -200°C to +1500°C.

    Featuring an accuracy of +/- 0.1% of full scale, this module guarantees exceptional precision that meets the stringent requirements of industrial processes. The choice of output signals, either 4-20mA or 0-10V, provides flexibility for integration into various control systems.

    Operated on a stable 12VDC power supply, the module is robust and reliable, functioning efficiently within an operating temperature range of -40°C to +70°C. The humidity tolerance of 5% to 95% non-condensing ensures durability even under challenging environmental conditions.

    With its compact size of 125mm x 65mm x 40mm and lightweight design weighing only 0.25kg, the module is easy to install and integrates seamlessly into existing systems. Connections are available through BNC connectors or screw terminals, offering flexibility in installation.

    Engineered for precision and efficiency, the WESTINGHOUSE 2D78559G01 Eaton Universal RTD Module is the ideal choice for industries that demand high accuracy in temperature control, enhancing operational performance and productivity.
